Demo Questions
Question 1
An engineer must advertise a bridge domain subnet out of the ACI fabric to an OSPF neighbor. Which two configuration steps are required? (Choose two.)
- Add External Subnet for External EPG flag under External EPG
- Configure Subnet scope to Advertised Externally
- Configure the Subnet under the EPG level
- Create Route Control Profile with the export direction under External EPG
- Add L3Out profile to the bridge domain using Associated L3Outs section
Correct answer: BE
Explanation:
BE: 17 - Mosted BE: 17 - Mosted
Question 2
Which routing protocol is supported between Cisco ACI spines and IPNs in a Cisco ACI Multi-Pod environment?
- OSPF
- IS-IS
- BGP
- EIGRP
Correct answer: A
Explanation:
A: 9 - MostedC: 1 A: 9 - MostedC: 1
Question 3
In-band is currently configured and used to manage the Cisco ACI fabric. The requirement is for leaf and spine switches to use out-of-band management for NTP protocol. Which action accomplishes this goal?
- Select Out-of-Band as Management EPG in the default DateTimePolicy.
- Create an Override Policy with NTP Out-of-Band for leaf and spine switches.
- Change the interface used for APIC external connectivity to ooband.
- Add a new filter to the utilized Out-of-Band-Contract to allow NTP protocol.
Correct answer: A
Explanation:
A: 5 - MostedC: 1 A: 5 - MostedC: 1
Question 4
An engineer must configure RADIUS authentication with Cisco ACI for remote authentication with out-of-band management access. Drag and drop the RADIUS configuration steps from the left into the required implementation order on the right. Not all steps are used.
Correct answer: To work with this question, an Exam Simulator is required.
Question 5
Refer to the exhibit. An engineer configures an L3Out but receives the error presented. Which action clears the fault?
- Acknowledge the QoS-related error.
- Associate a custom QoS class.
- Create a custom QoS policy.
- Set the QoS policy to Level 3.
Correct answer: A
Explanation:
A: 3 - MostedB: 2C: 1 A: 3 - MostedB: 2C: 1
Question 6
An engineer deploys a two-pod Cisco ACI Multi-Pod environment. Why should no more than two Cisco APIC controllers be deployed in the same pod?
- to enable equal capacity to scale in each pod
- to avoid losing all replicas of a shard if a pod fails
- to avoid hair-pinning traffic that is destined for the primary APIC controller between pods
- to ensure that all nodes in all pods have local access to a controller
Correct answer: B
Explanation:
B: 6 - Mosted B: 6 - Mosted
Question 7

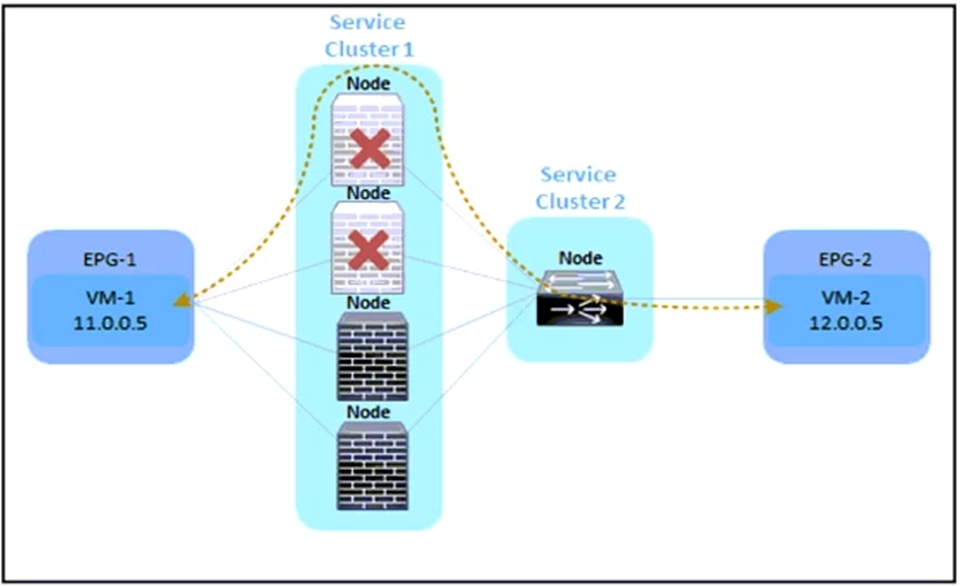

Refer to the exhibit. An engineer must divert the traffic between VM-1 and VM-2 by using a Multi-Node service graph. The solution should prevent an insufficient number of available Layer 4 to Layer 7 devices in the first cluster. Which configuration set accomplishes this goal?
- PBR node tracking
- tracking threshold with action bypass
- symmetric PBR
- resilient hashing
- PBR node tracking
- tracking threshold with action permit
- unidirectional PBR
- resilient hashing
- PBR node tracking
- tracking threshold with action permit
- symmetric PBR
- resilient hashing
- PBR node tracking
- tracking threshold with action deny
- symmetric PBR
- unidirectional PBR
Correct answer: A
Explanation:
A: 4 - MostedC: 1 A: 4 - MostedC: 1
Question 8
Which two IP address types are available for transport over the ISN when they are configured from Cisco ACI Multi-Site Orchestrator? (Choose two.)
- Management IP of APICs
- Management IP of the MSO Node
- Anycast Overlay Multicast TEP
- MP-BGP EVPN Router-ID
- Common Pervasive Gateway
Correct answer: CD
Explanation:
CD: 13 - Mosted CD: 13 - Mosted
Question 9
A bridge domain for a new endpoint group in the Cisco ACI fabric must meet these requirements:
- The bridge domain must function as the default gateway for the subnet so that routing remains within the Cisco ACI fabric.
- ARP requests must be managed via Layer 3 unicast packets or be dropped to reduce excessive broadcast traffic.
- The impact of misconfigured virtual machines must be kept to a minimum by preventing IP addresses outside of the configured subnet from being routed.
Which set of actions must be taken?
- Disable ARP Flooding.Enable Limit IP Learning to Subnet.Enable Unicast Routing on the bridge domain and configure a subnet.
- Enable Limit IP Learning to Subnet.Enable Unicast Routing on the bridge domain and configure a subnet.Set Multi-Destination Flooding to Flood in BD.
- Set Endpoint Retention Policy to default.Enable ARP Flooding.Enable Unicast Routing on the bridge domain and configure a subnet.
- Enable Unicast Routing on the bridge domain and configure a subnet.Set L2 Unknown Unicast to Flood.Disable Endpoint Retention Policy.
Correct answer: A
Explanation:
A: 11 - MostedB: 1 A: 11 - MostedB: 1
Question 10
A Cisco ACI endpoint group must have its gateway address migrated out of the ACI fabric. An engineer configures EPG-TEST with a static port binding and configures the encap VLAN with the required VLAN. Which configuration set must be used on the bridge domain to meet these requirements?
- L2 Unknown Unicast: Hardware ProxyUnicast Routing: Disabled -ARP Flooding: Enabled
- L2 Unknown Unicast: Hardware ProxyUnicast Routing: Disabled -ARP Flooding: Disabled
- L2 Unknown Unicast: Flood -Unicast Routing: Disabled -ARP Flooding: Enabled
- L2 Unknown Unicast: Flood -Unicast Routing: Enabled -ARP Flooding: Enabled
Correct answer: C
Explanation:
C: 7 - Mosted C: 7 - Mosted
